ToolkitRC M9 600W charger

ToolkitRC M9 600W charger
[15 آبان 1401 ساعت 20:48] باتری - شارژر - battery - charger > ToolkitRC M9 600W charger



ToolkitRC M9 600W 20A 1-8S Multi-Function DC Smart Balance Charger w/

Voice Alerts

شارژر بالانسر دیجیتال همه کاره برای همه مدل باتری

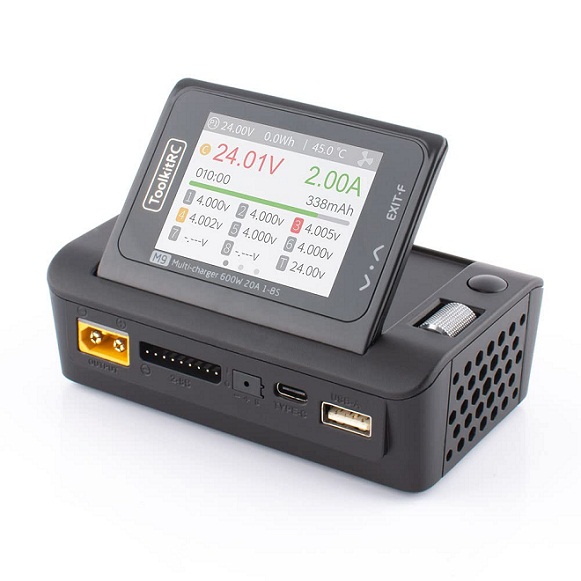

ToolkitRC M9 600W 20A 1-8S Multi-Function DC Smart Balance Charger w/ Voice Alerts
The acclaimed ToolkitRC M9 is a multi-function balance charger with all-in-one features. This device features 600 Watts of Power, Dual USB Fast Chargingwith maximum 65W USB-C/USB-A Output, an IPS Wide-Angle ColorDisplay

Specifications

  • USB A+C Output: 5-20V@65W PD QC PPS AFC SCP
  • Power supply: 1.0-20A@1-35V mode:CC+CV
  • Measurer:
    • SBUS: 880-2200us*16CH @20-100Hz
    • PPM: 880-2200us*8CH @20-50Hz
    • PWM: 880-2200us @20-400Hz
  • Battery Type: LiPo LiHV LiFe Lion LTO@1-8S
  • Output:
    • SBUS: 880-2200us*16CH @74Hz
    • PWM: 500-2500us @20-1000Hz
    • PPM: 880-2200us*8CH @50Hz
  • Discharging Power:
    • 0.1-20A@600W Recycle External
    • 0.1-3A@20W Normal Mode
  • Charging Power: 0.1-20A@600W
  • LCD: 2.4*IPS RGB 320*240 Pixel
  • Balance Current: 1000mA@4.2V
  • ESC: 1-20A@1-35V MAX 600W
  • NiMh @1-20S Pb @1-10S
  • Voltage: 1.0V-5.0V@1-6S
  • Input: 7-35V@MAX35A
