ماشین کنترلی سوختی RTA4 S28

ماشین کنترلی سوختی RTA4 S28
[16 اسفند 1393 ساعت 18:10] ماشین کنترلی سوختی.Cars engines > ماشین کنترلی سوختی RTA4 S28

RTA4 S28

Item No. 6241-F

Specification
Wheelbase(mm / in.) 368 mm
Weight(g/ lbs.) 5000g
Length(mm / in.) 610mm
Width(mm / in.) 335mm
Height(mm / in.) 240mm
Ground Clearance(mm / in.)
Drive train/Pulley ratio
Motor
Enigine Pro-28BD-R

Content





Introduction

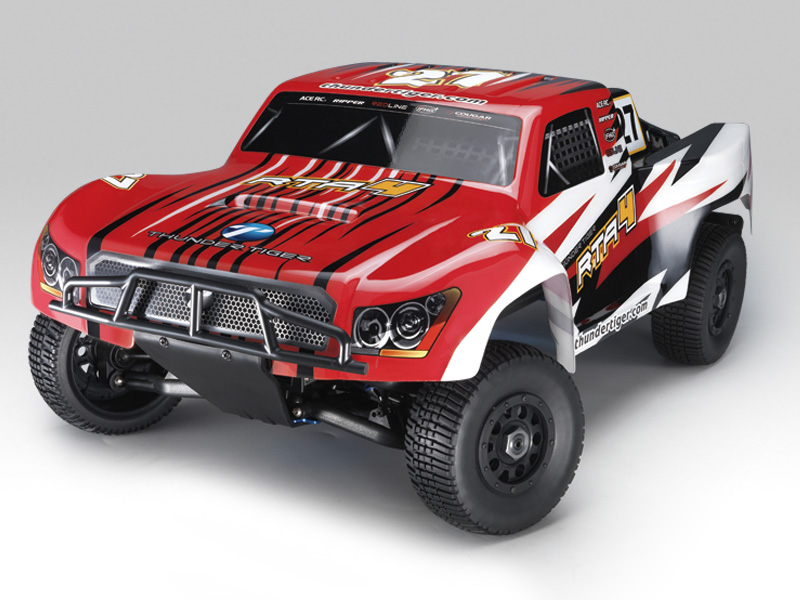

RTA4 S28 1/8 NITRO 4WD OFF ROAD RACE TRUCK
DRIVE WITH EXTREME PLEASURE

It is another Thunder Tiger’s glory moment to represent our new nitro-powered RTR race truck: RTA4 S28. In the light of rugged chassis of MTA4 series with race proven performance, this astounding truck is absolutely one solid performer that provides only the type of smile that scale realism can supply with. Regarding the fantastic appearance of RTA4 S28, the scale model of body and wheels/tires is identically-designed to simulate the full scale CORR trucks. In terms of its motor system, the truck comes with Thunder Tiger Pro-28 engine with the unique Dual-Start system: convenient pull start or hex-shaft/drill start combined in one unit! RTA4 S28 also consists of other practical features including large-bore aluminum-bodied carburetor, two-stage foam element air filter, the braces designed to absorb major impacts and huge bumpers whose mud flaps on the rear are used to protect RTA4 away from mud and dirt. No matter which roles you are, racers or bashers, RTA-4 S28 definitely provides with extreme enjoyment and extraordinary performance beyond your expectation.



Features



1.Outlaw race truck chassis that provides with a veryauthentic and competitive RC racing experience
2.Super brutal Pro-28 (4.6cc) size engine that has two different starting methods (pull start and hex shaft start)
3.A very rigid and extruded aluminum channel chassis used to handle the stress of the long travel suspension as well as the true scale race truck
4.Reliable, two-speed, adjustable automatic shifting, forward and reverse transmission
5. Long travel suspension is controlled by 8 adjustable oil damped shocks which handle jump heights in excess of 2 meter.
6.Multi-terrain, soft-compound off road tires
7.The large capacity 150cc fuel tank extends the driving time.
8.Functional mud flaps with TT logo
9.High impact absorbing tube-style bumpers on the front and rear protect the chassis and suspension during hard landings and tumbles.
10.Realistic styled body shell, wheels and tires match the design of full size race truck.

Pro-28BD-R
Thunder Tiger Pro-28BD-R Engine with the unique Dual-Start system: Convenient pull start or hex-shaft/drill start combined in one unit! Large-bore aluminum-bodied carburetor and two-stage foam element air filter. 7075 T-6 connecting rod.

Specifications:
Engine Type Nitro 4.6cc. .28 PRO
Transmission
 2-Speed w/ Reverse
Drive System  4 Wheel Drive
Length  610mm
Width  335mm
Height  240mm
Wheelbase  368mm (F/R)
Ground Clearance  60mm
Fuel Tank Capacity  150cc
Chassis Type
Extruded aluminum tunnel chassis
Brake Type Composite Disc
Shocks Eight Oil Filled Big Bore Shocks
Radio System ACE RC COUGAR P3-3CH 2.4GHz Transmitter & Receiver
