INFERNO MP9 TKI3 Readyset T1 (White) - Kyosho

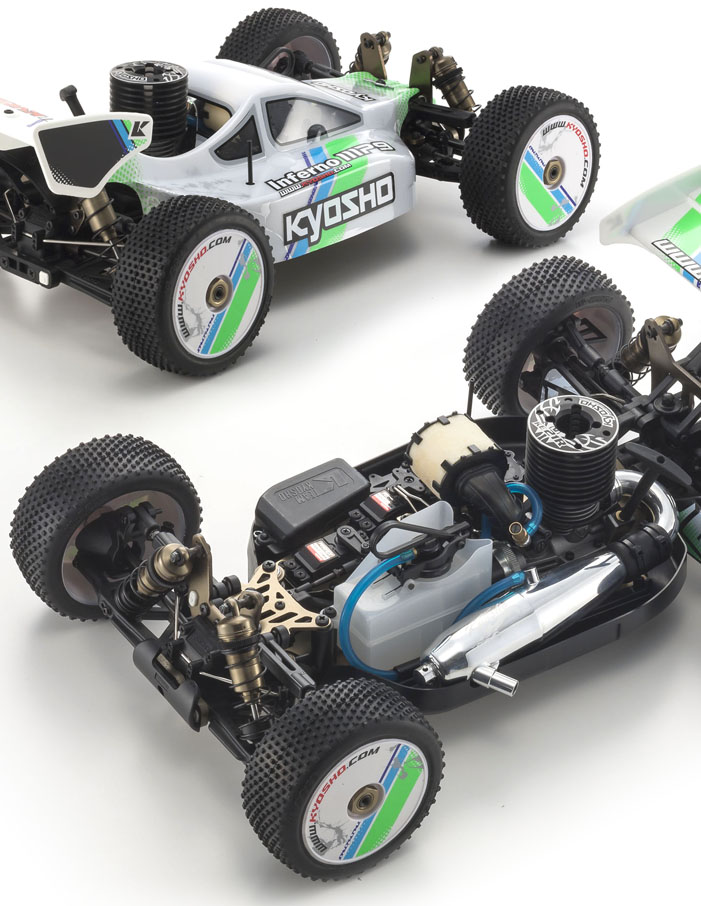

INFERNO MP9 TKI3 Readyset T1 (White) - Kyosho
[10 مهر 1394 ساعت 14:44] ماشین کنترلی سوختی.Cars engines > INFERNO MP9 TKI3 Readyset T1 (White) - Kyosho





＜ Readyset Contents ＞

  • Factory assembled chassis installed with R/C system
  • Printed pre-cut body complete with coloring
  • Pre-installed KE21R engine with rear exhaust
  • Polished tuned muffler
  • Syncro KT-331P transmitter
  • 1.5, 2, 2.5mm Hexagonal wrench
  • Cross wrench (small)
  • 17mm Wheel wrench



＜ Required for operation ＞

  • Fuel
  • AAA x 8 alkaline batteries for transmitter
  • Starting tools (Fuel bottle, Plug heater)
Chassis Technical Data
Length 490mm
Width 307mm
Height 180mm
Chassis Type Full Time 4WD with 3 diff shaft drive
Wheelbase 325mm (4 settings with rear hub collar position)
Tread (F/R) 254mm (change bushes for 3 rear and 2 front settings)
Tire(F/R) Micro Square Pin Type : 116 x 44mm (both F/R)
Gear Ratio 11.7：1
Weight 3,370g approx.
Engine KE21R (recoil starter installed / rear exhaust)

Vivid colorful design is printed on the body, which is pre-cut and ready to be mounted on the chassis.



New design of the aluminum rear hubs effectively realizes shorter suspension arms to deliver reactive leg movement for traction efficiency.



2.4GHz Syncro KT-331P transmitter automatically manages frequency bands. Features full setting functionality and is compatible with future technological development.

Battery box positions the receiver battery near the center. Supports mass concentration around the CG for improved control.



Includes 2.4GHz receiver that delivers stable control response and easy frequency band management. Features failsafe function that automatically slows the car down if signal is lost.



Aluminum big bore oil shocks feature dial adjustment of spring tension and chassis height.
