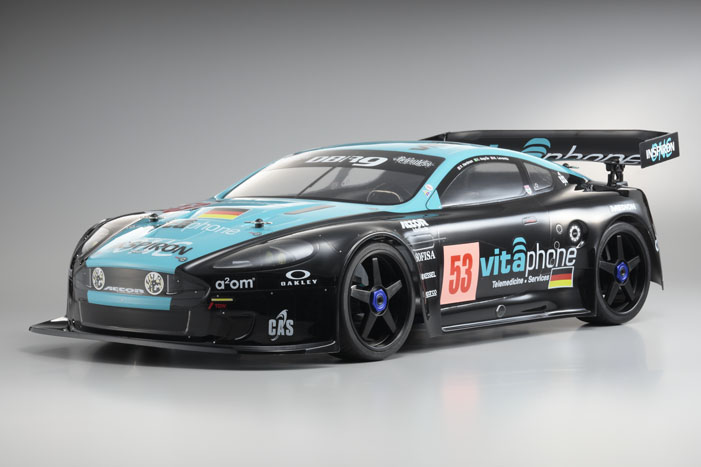

1/8 GP 4WD TOURING CAR INFERNO GT2 RACE SPEC

1/8 GP 4WD TOURING CAR INFERNO GT2 RACE SPEC
[10 مهر 1394 ساعت 14:49] ماشین کنترلی سوختی.Cars engines > 1/8 GP 4WD TOURING CAR INFERNO GT2 RACE SPEC





＜ ReadySet Contents ＞

  • Fully assembled chassis complete with 2channel 2-servo control and linkages installed.
  • Pre-cut and pre-painted body complete with decals applied
  • PERFEX KT-201 transmitter
  • Note) AA-sized alkaline batteries x 8 for transmitter/receiver, and fuel are sold separately.
Chassis Technical Data
Length 515mm
Width 310mm
Height 135mm
Wheelbase 360mm
Tread (F/R) 262mm／265mm
Tire(F/R) Φ97mm ×40mm
Gear Ratio 1st 10.14:1, 2nd 7.90:1
Weight 3,650g (approx.)
Engine KE25
R/C System KT-201








Almost square dimensions of 310mm width and 360mm wheelbase deliver rock-solid running stability.



Optimal displacement of the KE25 engine generates plenty of powerful drive energy. Premium grade polished muffler and manifold are included as standard.



Inferno MP-7.5’s superior suspension function has been optimized for on-road performance.

High grip tires combine with high strength wheels to deliver the edge in racing battle.



Includes the large capacity air cleaner. Maintains engine performance over long periods.



Front/rear independent disc brakes deliver reliable braking power. Thick brake discs minimize change in brake feeling from heat.

Engine’s power band used to greater effect with the shoe-type 2-speed transmission using gear ratio 1st 15 : 46 and 2nd 18 : 43.



150cc fuel tank delivers about 10 minutes per tank without refueling.



Kyosho's unique 2.4GHz “Syncro KT-201/KR-200” transmitter and receiver incorporate additional functions and are designed for easy operation.
